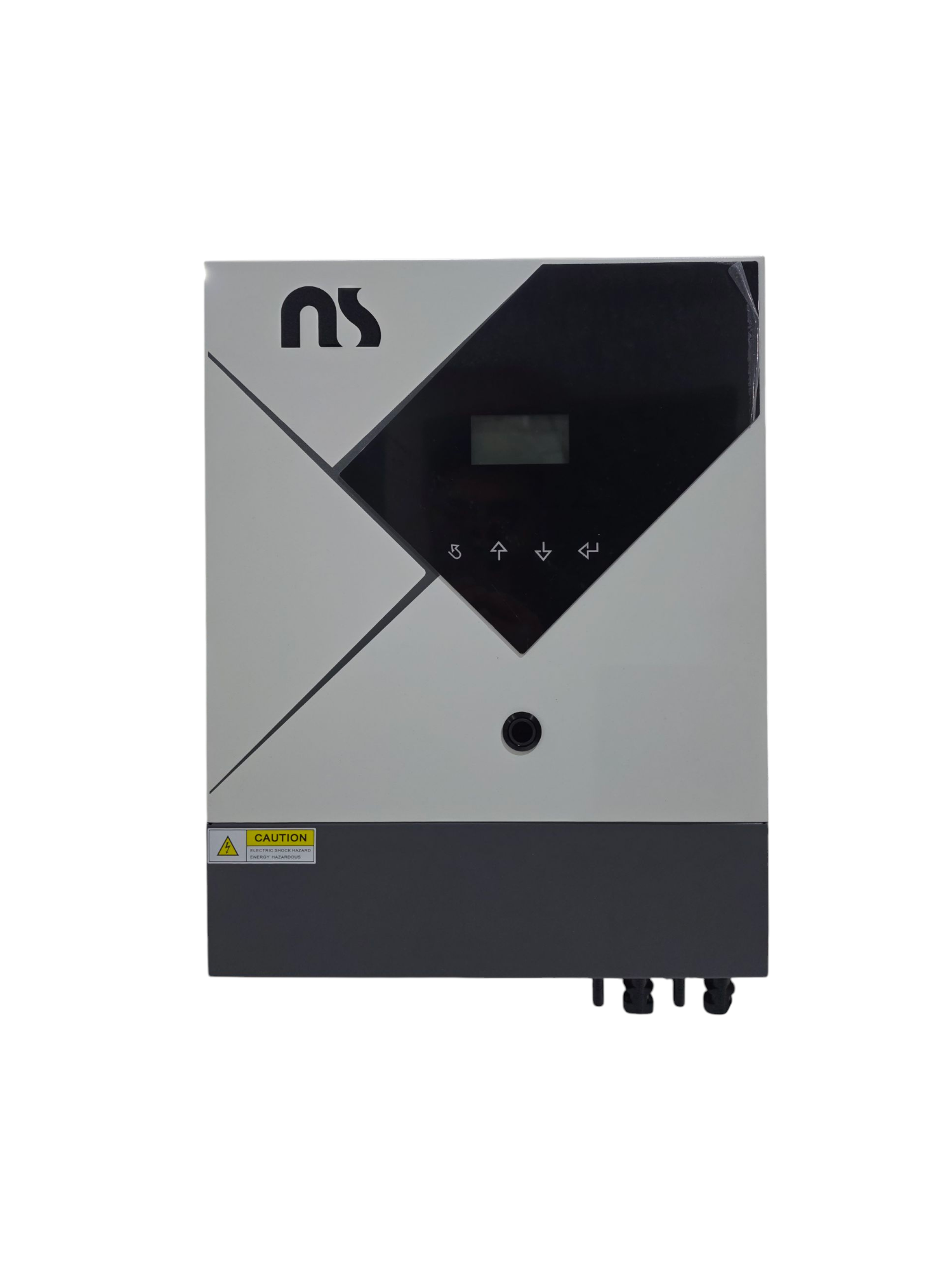

NS Prestige Plus 6KW PV10,000 Hybrid Solar Inverter AXPERT VM II ELITE 6KP

NS Axpert VM II Elite 6KP 6000W Hybrid Solar Inverter

Key Features:

✅ Dual Inputs & Outputs – Efficient smart energy management with flexible power distribution.

✅ High PV Input Capacity – Supports up to 10,000W solar power with 27A max input current.

✅ Wide PV Voltage Range – Operates between 60VDC to 450VDC for greater solar compatibility.

✅ Battery Management System (BMS) Support – Built-in communication port ensures smooth integration with lithium and lead-acid batteries.

✅ WiFi & Mobile App Monitoring – Remote monitoring and OTA firmware upgrades for seamless system updates.

✅ Enhanced Safety & Efficiency – Pre-charge circuit reduces inrush current, plus built-in PV DC switch and true battery reverse polarity protection.

✅ Silent & Energy Efficient – Low-noise operation with minimal no-load power consumption.

✅ Parallel Operation Support – Expand power capacity by connecting up to 2 units in parallel.

✅ External CT Sensor – Guarantees 100% self-consumption, optimizing your energy usage.

✅ Built-in Meter Calibration – Ensures accurate system operation for optimized performance.

✅ Pure Sine Wave Output – Stable electricity supply for sensitive appliances and electronic devices

Technical Specifications:

General Information:

Model: Axpert VM II Elite 6KP

Rated Power: 6000VA / 6000W

Input:

Voltage Range:

170-280 VAC (For Personal Computers)

90-280 VAC (For Home Appliances)

Frequency50Hz/60Hz (Auto Sensing)

Output:

Voltage Regulation: 230V ±5%

Surge Power: 12,000VA

Efficiency (Peak): 93%

Transfer Time:

10ms (For Personal Computers)

20ms (For Home Appliances)

Waveform: Pure Sine Wave

Battery:

Battery Voltage: 48VDC

Floating Charge Voltage: 54VDC

Overcharge Protection: 63VDC

Solar Charger & AC Charger:

Solar Charger Type: MPPT

Maximum PV Array Open Circuit Voltage: 500VDC

Maximum PV Input Power: 10,000W

Maximum PV Input Current: 27A

MPP Voltage Range: 60-450VDC

Maximum Solar Charge Current: 120A

Maximum AC Charge Current: 100A

Maximum Total Charge Current: 120A

Physical & Communication:

Dimensions (D x W x H): 144mm x 348mm x 446mm

NetWeight 12.5 kg

Communication Interfaces: RS232 / RS485 / CAN / WiFi

Operating Environment:

Humidity: 5% to 95% Relative Humidity (Non-condensing)

Operating Temperature: -10°C to 50°C

Storage Temperature: -15°C to 60°C

📦 Package Includes:

✔️ 1 x NS Axpert VM II Elite 6KP Inverter

✔️ User Manual

✔️ Connection Cables

🛒 Order Now & Upgrade Your Solar System with WOCEL’s Advanced Hybrid Inverter!
